Fence Mower Parts & Accessories
Find replacement blades, belt specifications, and help ordering other parts for your Wright Fence Mower.
Replacement Blades
Select a blade to view details and order. Every Fence Mower ships with a Medium Lift Blade.

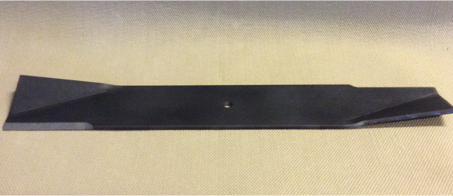

Medium Lift Blade
$91.50
This is our standard blade that comes with every Fence Mower. The blade gives a smooth finish under your fence and discharges cuttings to the rear of the mower.
View and order

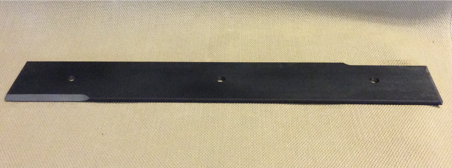

Brush Removal Blade
$91.50
The brush removal blade is a flat design to allow the blade to cut through heavy and stocky brush. The blade can handle saplings up to 1 ½” in diameter. Stocky brush and saplings...
View and orderBelts
You may order belts from our parts department or purchase them locally using the specifications below.
| Model | Belt | Outside length | Top width | Thickness | Manufacturer model |
|---|---|---|---|---|---|
| FM60 | Dayton V-Belt B104 | 107 in | 0.656 in | 13/32 in | 3GWH9 |
| FM30 | Dayton V-Belt B77 | 80 in | 21/32 in | 0.406 in | 6A160 |
To replace the belt, loosen the gearbox bolts, lift the gearbox, position the belt beneath it, and securely retighten the gearbox bolts. Consult the Operator’s Manual before beginning service.
All Other Parts
Use the Operator’s Manual to identify the part number, then contact our parts department to place your order.
Find the part number
The FM30 parts diagram is on manual page 9. The FM60 parts diagram is on manual page 11.
Open the Operator’s ManualReplacement parts are fulfilled by our partner company, Hardee, and ship from South Carolina.
